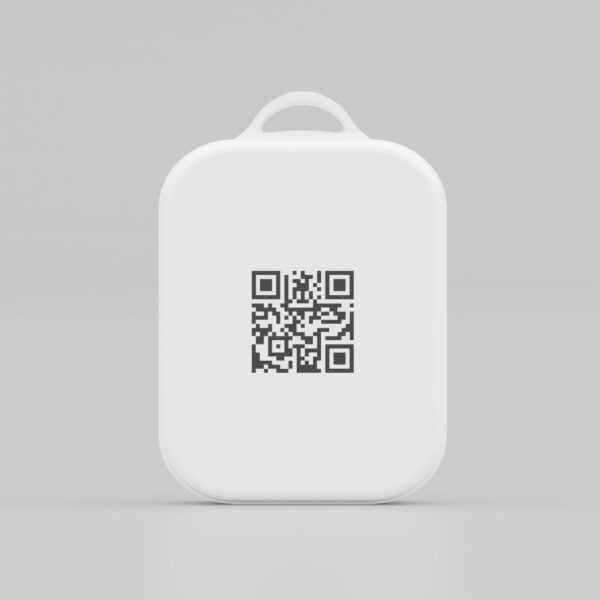

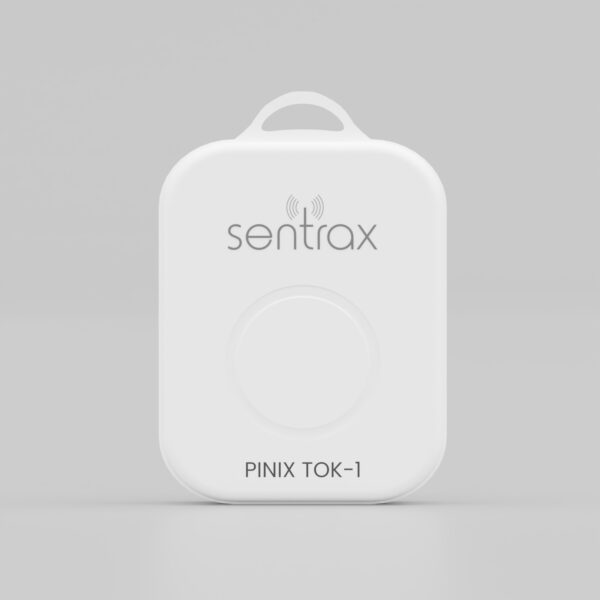

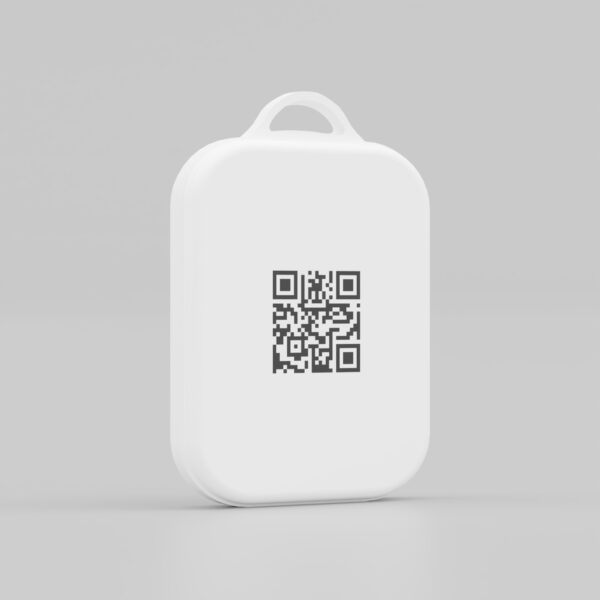

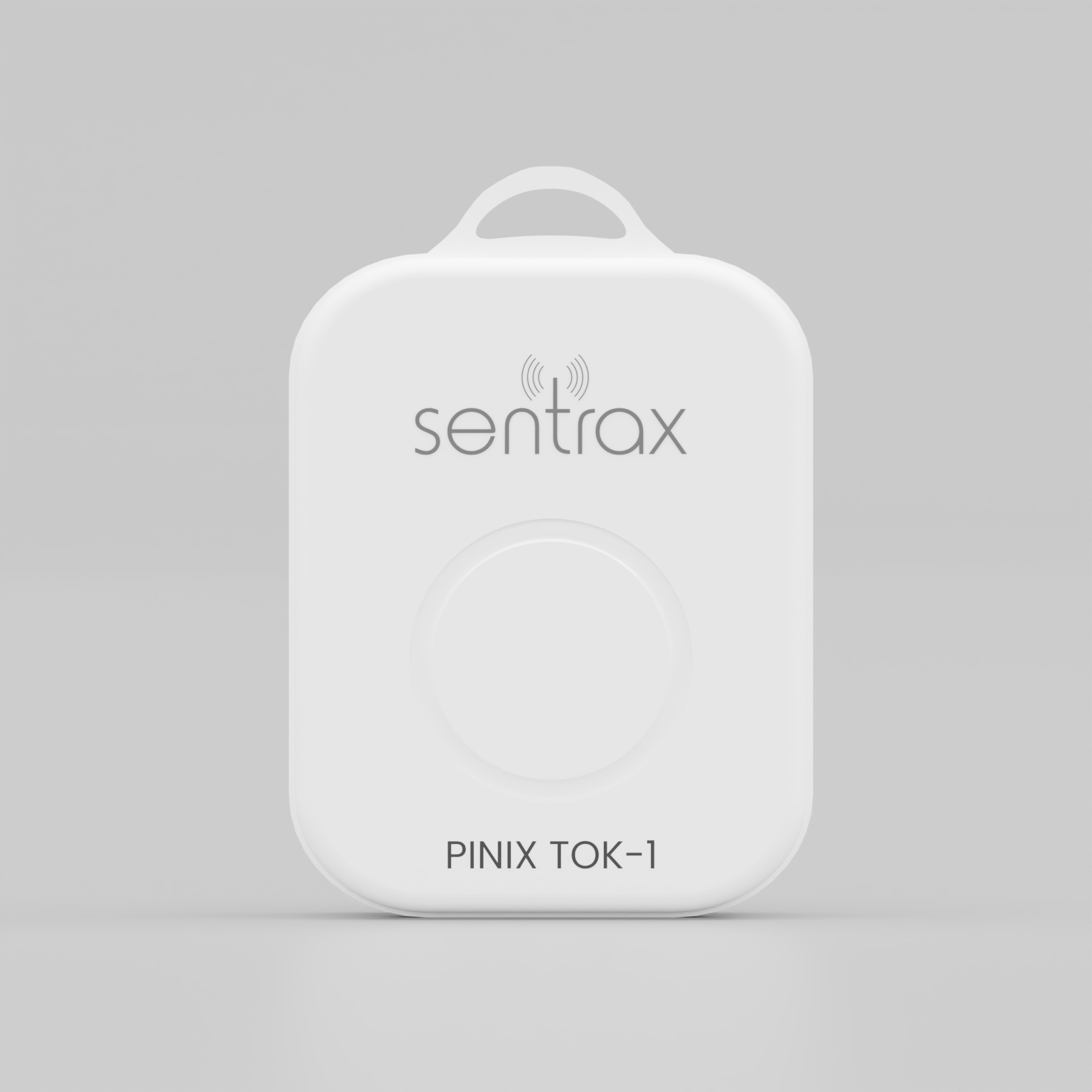

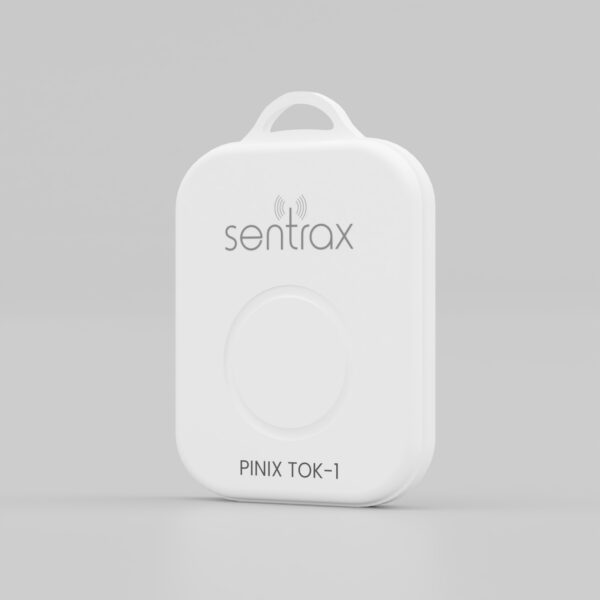

PINIX TOK-1
Simply install and track. The PINIX TOK-1 is a smart BLE badge with temperature sensing, ultra-low power, easy attachment, and fast RTLS integration.
Brand: Sentrax
Model: PINIX TOK-1
Operating Environment
- Temperature Range: -20°C to 60°C
- Operating Humidity: 90%
Sensors and Interfaces
- Motion sensing 3 Axis Accelerometer
- Temperature Internal Temperature Sensor
- Button 1 user interact-able button
- LED 1 Red LED
Bluetooth Radio
- Type: Bluetooth Low Energy 5.x
- Advertisement Interval: 100ms to 10seconds
- Frequency: 2.4GHz
- Transmit Power: +4dBm to-20 dBm
- Antenna Type: Chip Antenna, Omni Directional
Description
The PINIX line is a series of advanced Bluetooth Low Energy 5.x devices using standard RTLS tag technology. The PINIX TOK-1 is a Smart Badge BLE AoA Tag with a Temperature Sensor for person tracking, positioning, and temperature monitoring. It features an ultra-low power consumption chipset Nordic nRF52 series.
The PINIX TOK-1 has a keychain/lanyard hole that can easily be attached to other objects and uses a commercially available replaceable button cell to power itself. The PINIX TOK-1 comes with a downloadable SDK with an extensive library for easy integration into a wide range of location-based and navigation-based applications. It also includes a wide range tool facilitating optimal setup and installation.
Application Area:
- Indoor localization
- Indoor Navigation
- Location-based services
- Person tracking
