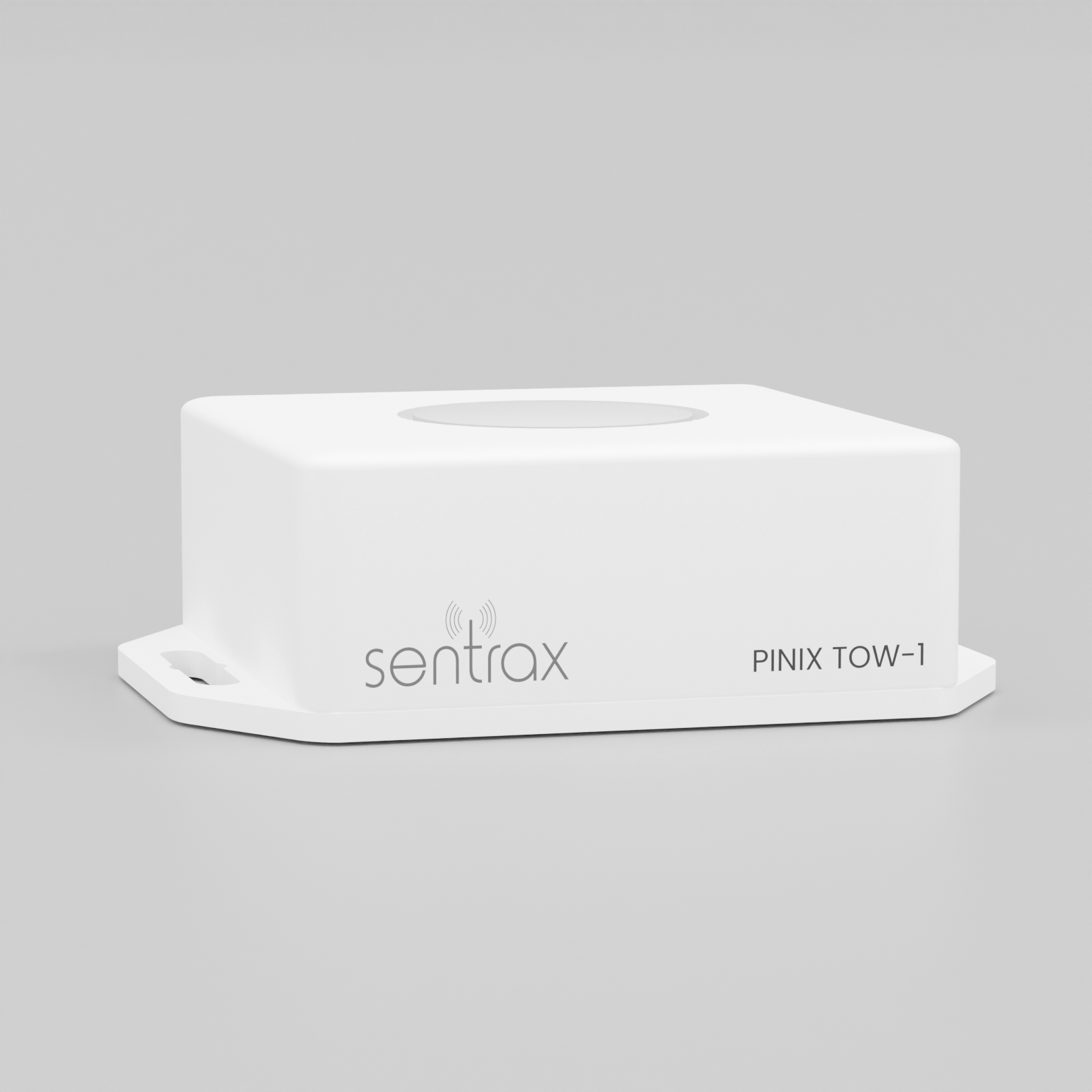

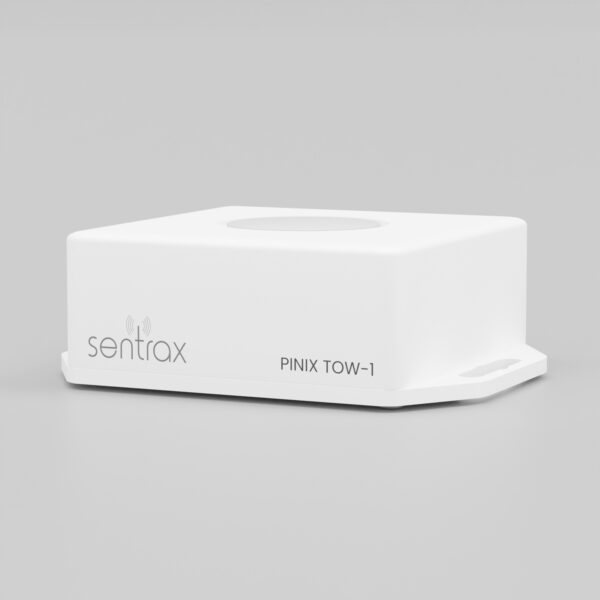

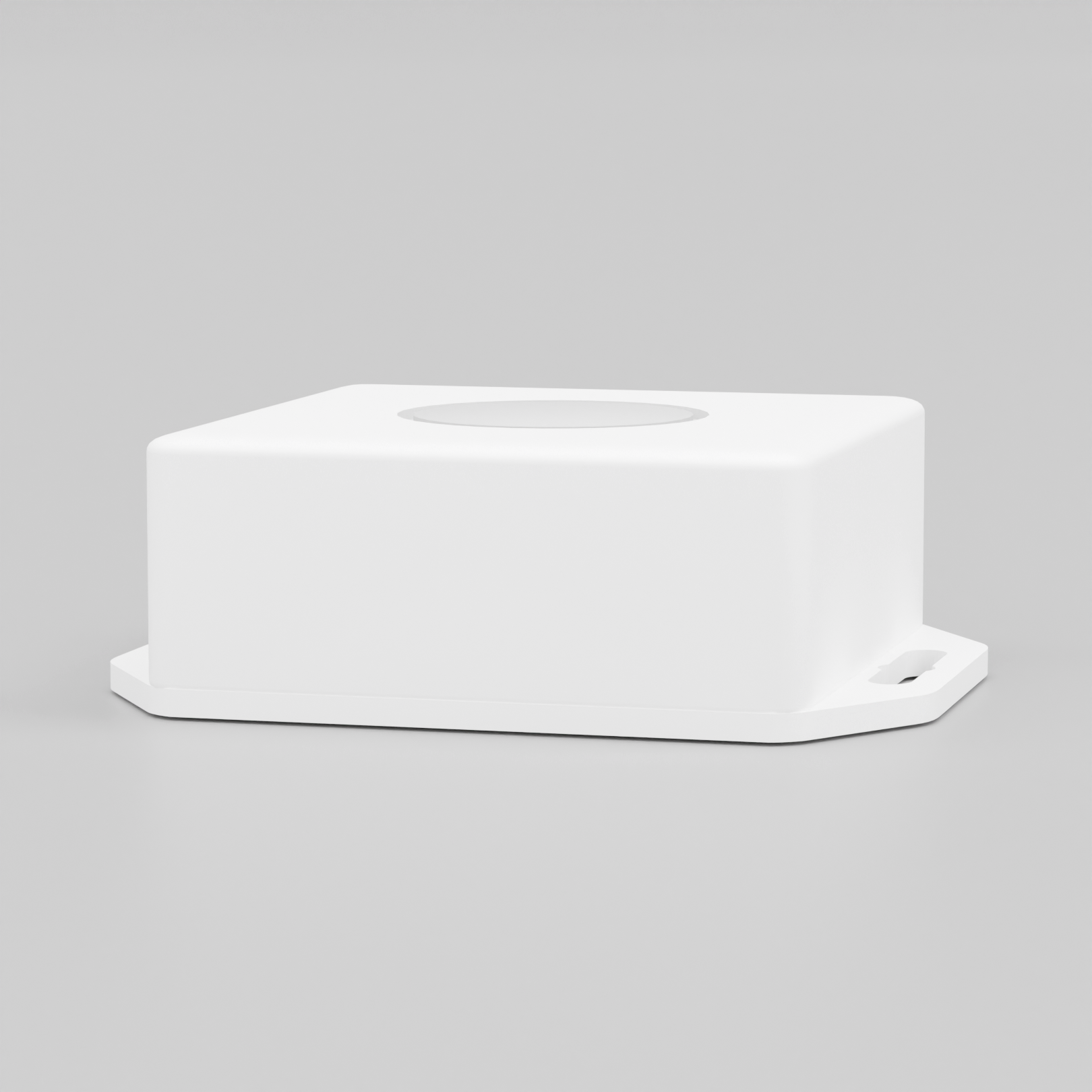

PINIX TOW-1

Track with pinpoint accuracy. The PINIX TOW-1 is a powerful BLE 5.1 AoA tag designed for precise asset tracking and location-based solutions. Ultra-low power, long battery life, and effortless integration with a full SDK and setup tools.

Brand: Sentrax
Model: PINIX TOW-1

Click here to get a quote.

Or click here to talk to a live specialist

Category: Brand:

Operating Environment

  • Temperature Range -30°C to 85°C
  • Operating Humidity 90%

Sensors and Interfaces

  • Motion sensing 3 Axis Accelerometer
  • Button 1 user interact-able button
  • LED 1 Red LED

Bluetooth Radio

  • Type: Bluetooth Low Energy 5.1 (AoA)
  • Advertisement Interval: 100ms to 10seconds
  • Frequency: 2.4GHz
  • Transmit Power: +4dBm to-20 dBm
  • Antenna Type: Chip Antenna, Omni Directional

Description

The PINIX line is a series of advanced Bluetooth Low Energy 5.1 devices using multi-standard beacon technology. The PINIX TOW-1 is a BLE Angle of Arrival (AoA) Tag which is specially conceived for advanced business solutions using location-based and asset tracking-based applications. It features an ultra-low power consumption and long battery life. The PINIX TOW-1 can be easily mounted on various surfaces and uses commercially available replaceable button cells.

The PINIX TOW-1 comes with a downloadable SDK with an extensive library for easy integration into a wide range of location-based and indoor navigation-based applications. It also includes a wide range of tools facilitating optimal set-up and installation.

Application Area:

  • Indoor localization
  • Indoor navigation
  • Location-based services
  • Asset & logistics tracking
